Plug and Display Analog/Digital (P&D-A/D)
Defined by Video Electronic Standards Association (VESA) in the Plug and Display (P&D) standard
(at the motherboard)
(at the cable)

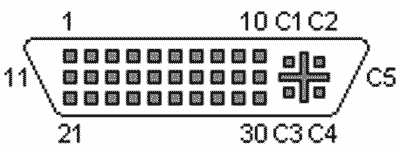

35 PIN MOLEX "MicroCross" FEMALE at the videocard/monitor

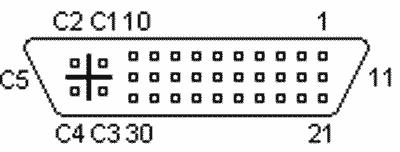

35 PIN MOLEX "MicroCross" MALE at the cable
|
Pin
|
Name
|
|
1
|
TMDS Data 2 +
|
|
2
|
TMDS Data 2 -
|
|
3
|
TMDS Data return
|
|
4
|
Hz and Vt Sync return
|
|
5
|
Horizontal sync/Composite sync
|
|
6
|
Vertical sync
|
|
7
|
TMDS Clock return
|
|
8
|
Charge power
|
|
9
|
1394 pair A, data -
|
|
10
|
1394 pair A, data +
|
|
11
|
TMDS Data 1 +
|
|
12
|
TMDS Data 1 -
|
|
13
|
TMDS Data 1 return
|
|
14
|
TMDS Clock +
|
|
15
|
TMDS Clock -
|
|
16
|
USB data +
|
|
17
|
USB data -
|
|
18*
|
1394 outer shield (optional) & Charge Power return
|
|
19
|
1394 Vg
|
|
20
|
1394 Vp
|
|
21
|
TMDS Data 0 +
|
|
22
|
TMDS Data 0 -
|
|
23
|
TMDS Data 0 return
|
|
24
|
Stereo sync (TTL)
|
|
25
|
DDC return & Stereo Sync return
|
|
26
|
DDC data (SDA)
|
|
27
|
DDC clock (SCL)
|
|
28
|
+5 VDC
|
|
29
|
1394 pair B, clock +
|
|
30
|
1394 pair B, clock -
|
|
C1
|
Red Video
|
|
C2
|
Green Video
|
|
C3
|
Pixel clock (optional)
|
|
C4
|
Blue Video
|
|
C5
|
Video / Pixel Clock Ground
|
